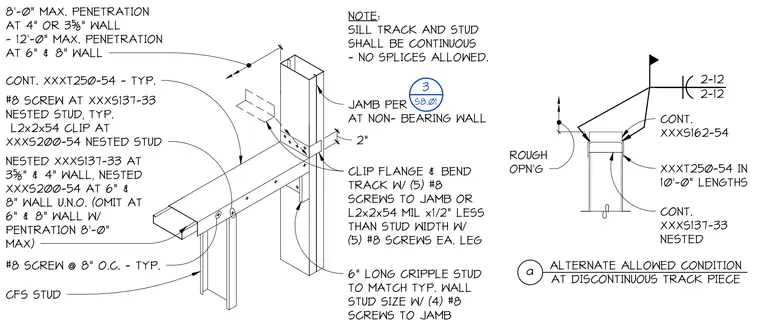

A continuous track member spans the rough opening, supported by nested studs fastened with number eight screws at eight inches on center. A two-inch by two-inch by fifty-four mil clip angle connects the nested stud to the track flange using five number eight screws per leg. A six-inch long cripple stud matches the typical wall stud size and connects to the jamb with four number eight screws. Sill tracks and studs remain continuous with no splices allowed. Nested studs size up from XXXS137-33 at three and five-eighths and four-inch walls to XXXS200-54 at six and eight-inch walls.
2" 6" LONG CRIPPLE STUD TO MATCH TYP. WALL STUD SIZE W/ (4) #8 SCREWS TO JAMB CLIP FLANGE & BEND TRACK W/ (5) #8 SCREWS TO JAMB OR L2x2x54 MIL x1/2" LESS THAN STUD WIDTH W/ (5) #8 SCREWS EA. LEG JAMB PER AT NON- BEARING WALL NOTE: SILL TRACK AND STUD SHALL BE CONTINUOUS - NO SPLICES ALLOWED. 8'-0" MAX. PENETRATION AT 4" OR 35" WALL - 12'-0" MAX. PENETRATION AT 6" & 8" WALL CONT. XXXT250-54 - TYP. #8 SCREW AT XXXS137-33 NESTED STUD, TYP. L2x2x54 CLIP AT XXXS200-54 NESTED STUD NESTED XXXS137-33 AT 35" & 4" WALL, NESTED XXXS200-54 AT 6" & 8" WALL U.N.O. (OMIT AT 6" & 8" WALL W/ PENTRATION 8'-0" MAX) #8 SCREW @ 8" O.C. - TYP. CFS STUD CONT. XXXS162-54 XXXT250-54 IN 10'-0" LENGTHS CONT. XXXS137-33 NESTED ROUGH OPN'G ALTERNATE ALLOWED CONDITION AT DISCONTINUOUS TRACK PIECE a 2-12 2-12 3 S8.01
