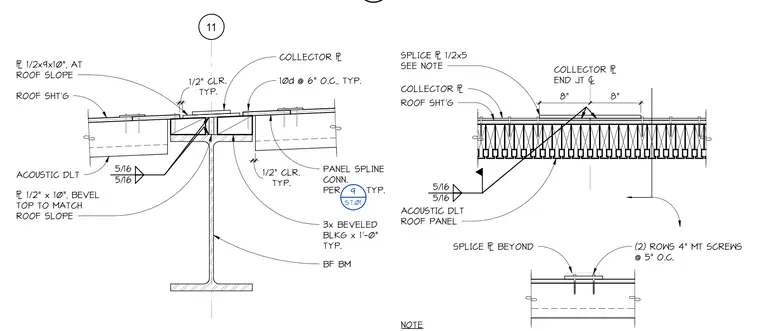

A roof collector plate and panel splice connection bears on a wide flange beam. The assembly incorporates a 1/2 x 9 x 10 inch plate at the roof slope alongside a 1/2 x 10 inch plate with a beveled top matching the roof slope. Acoustic dowel laminated timber roof panels utilize 3x beveled blocking at 1'-0" typical and maintain a 1/2 inch clearance. Two rows of 4 inch mechanical screws at 5 inches on center fasten the roof sheathing. A 1/2 x 5 inch splice plate is provided at the collector end joint with 5/16 welds.
11 ROOF SHT'G ACOUSTIC DLT COLLECTOR * * 1/2x9x10", AT ROOF SLOPE TYP. 1/2" CLR. 5/16 5/16 PANEL SPLINE CONN. PER TYP. 9 S7.01 TYP. 1/2" CLR. 3x BEVELED BLKG x 1'-0" TYP. BF BM * 1/2" x 10", BEVEL TOP TO MATCH ROOF SLOPE 10d @ 6" O.C., TYP. SPLICE * BEYOND COLLECTOR * ACOUSTIC DLT ROOF PANEL SPLICE * 1/2x5 SEE NOTE 5/16 5/16 ROOF SHT'G (2) ROWS 4" MT SCREWS @ 5" O.C. 8" 8" COLLECTOR * END JT 0 NOTE
