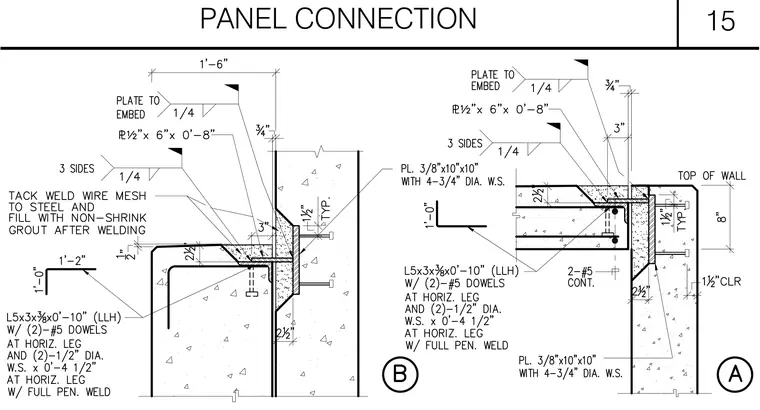

Precast concrete panels connect using embed plates measuring one-half inch by six inches by zero feet eight inches, welded with one-quarter inch fillet welds on three sides. Embedded steel angles measuring L5x3xthree-eighths by zero feet ten inches feature two number five dowels at the horizontal leg and two half-inch diameter welded studs at the horizontal leg with a full penetration weld. Additional plate connections measure three-eighths by ten by ten inches with four three-quarter inch diameter welded studs. Wire mesh is tack welded to the steel and the joint is filled with non-shrink grout after welding.
