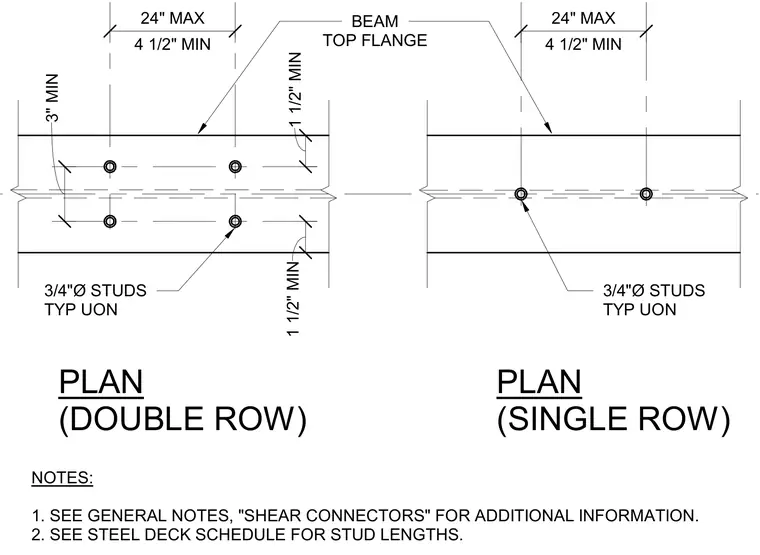

Three-quarter-inch diameter shear studs are spaced along the top flange of structural steel beams in single and double row configurations. The double row layout requires a minimum three-inch transverse spacing between studs, with longitudinal spacing ranging from four and one-half inches minimum to twenty-four inches maximum. Edge distances maintain a minimum one and one-half inch clearance from the flange edges. Stud lengths are determined per the steel deck schedule, and general notes require reference for additional shear connector information.
PLAN (DOUBLE ROW) PLAN (SINGLE ROW) NOTES: 1. SEE GENERAL NOTES, "SHEAR CONNECTORS" FOR ADDITIONAL INFORMATION. 2. SEE STEEL DECK SCHEDULE FOR STUD LENGTHS. BEAM TOP FLANGE 3/4"Ø STUDS TYP UON 4 1/2" MIN 24" MAX 4 1/2" MIN 24" MAX 3/4"Ø STUDS TYP UON 1 1/2" MIN 1 1/2" MIN 3" MIN
