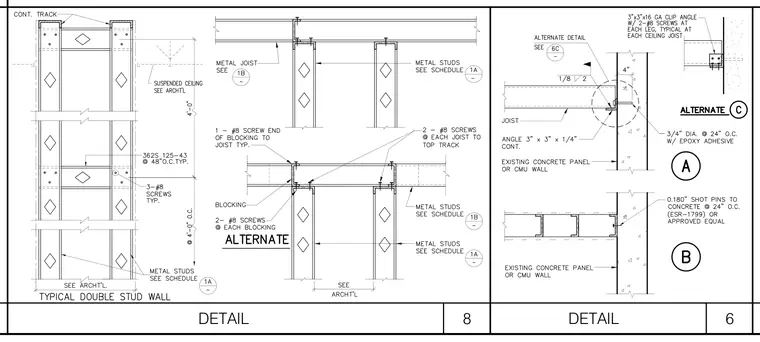

Cold-formed steel wall bracing assemblies featuring typical double stud walls constructed with continuous tracks and 362S.125-43 metal studs spaced at forty-eight inches on center with three number eight screws typical. Blocking is secured between studs using one number eight screw at each end and two number eight screws at the top track. Alternative wall-to-structure connection details show joists bearing against existing concrete or masonry panels using continuous three-by-three by one-quarter-inch steel angles anchored with three-quarter-inch diameter epoxy adhesive anchors at twenty-four inches on center. Additional alternate details utilize three-by-three by sixteen-gauge clip angles fastened with two number eight screws at each leg to ceiling joists. Alternative fastening methods also include 0.180-inch shot pins driven into concrete at twenty-four inches on center per ESR-1799 or approved equal.
