This connection details a cold-formed steel metal stud or jamb framing into a continuous bottom track with a deep leg inside track acting as a deflection track. Two number 10-16 self-drilling screws spaced at sixteen inches on center secure the track-to-track attachment. One number 10-16 screw is provided from each flange of the stud above into the track web. A half-inch gap is maintained with three-quarter inch maximum clearances for structural movement.

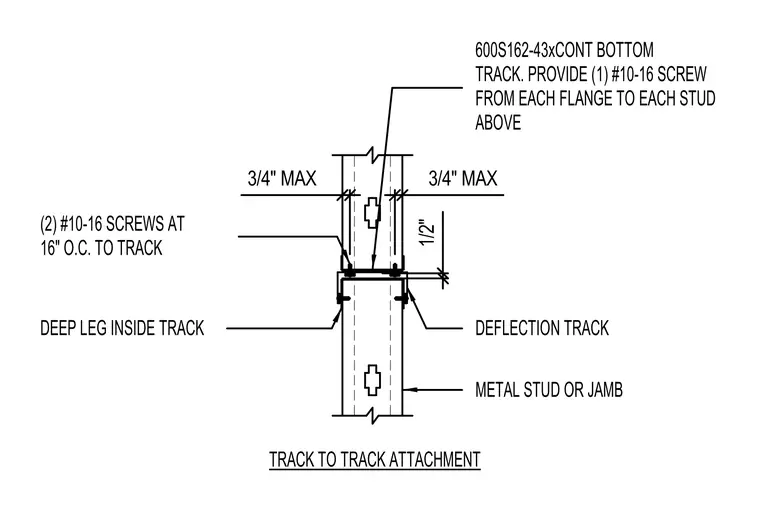

TRACK TO TRACK ATTACHMENT (2) #10-16 SCREWS AT 16" O.C. TO TRACK DEEP LEG INSIDE TRACK DEFLECTION TRACK METAL STUD OR JAMB 600S162-43xCONT BOTTOM TRACK. PROVIDE (1) #10-16 SCREW FROM EACH FLANGE TO EACH STUD ABOVE 1/2" 3/4" MAX 3/4" MAX
