Structural · S-29Q8F

Timber Column Base Plate Connection on Steel Beam

Materials

Steel Timber / Wood

Elements

Columns Beams Anchors / Embeds

Connections

Embed Plate

About this detail

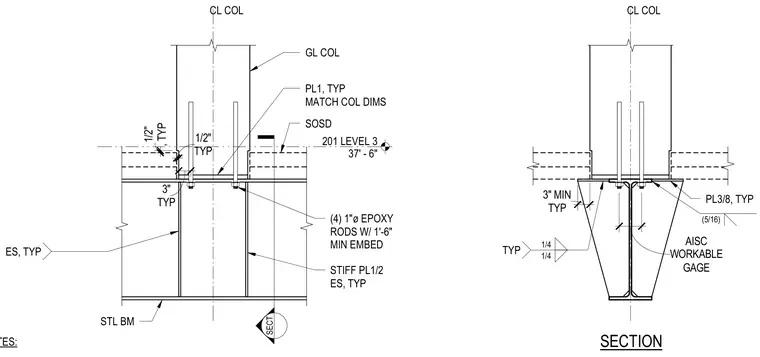

A glue-laminated timber column bears on a steel beam at Level 3, secured by a base plate matching the column dimensions. Four 1-inch diameter epoxy-set threaded rods with a 1-foot 6-inch minimum embedment anchor the column to the base plate. The supporting steel beam features 1/2-inch stiffener plates on each side and 3/8-inch plates with AISC workable gauges, welded with 5/16-inch and 1/4-inch fillet welds.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
