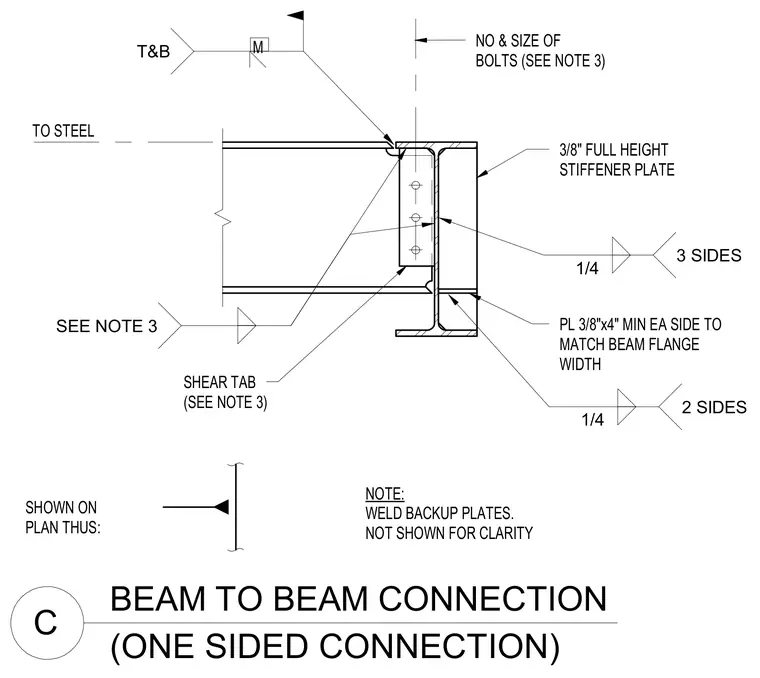

A structural steel beam-to-beam connection frames a supported beam into a supporting beam web on one side. A single plate shear tab connects the supported beam web using bolts sized per structural notes. The supporting beam web is reinforced with three-eighths-inch full-height stiffener plates and three-eighths-inch by four-inch plates on each side matching the beam flange width. Fillet welds of one-quarter-inch size secure the connection components on multiple sides. Weld backup plates are specified in the notes but omitted from the drawing for clarity.
BEAM TO BEAM CONNECTION C (ONE SIDED CONNECTION) SHOWN ON PLAN THUS: TO STEEL NOTE: WELD BACKUP PLATES. NOT SHOWN FOR CLARITY NO & SIZE OF BOLTS (SEE NOTE 3) SHEAR TAB (SEE NOTE 3) 3/8" FULL HEIGHT STIFFENER PLATE PL 3/8"x4" MIN EA SIDE TO MATCH BEAM FLANGE WIDTH M T&B 1/4 3 SIDES SEE NOTE 3 1/4 2 SIDES
