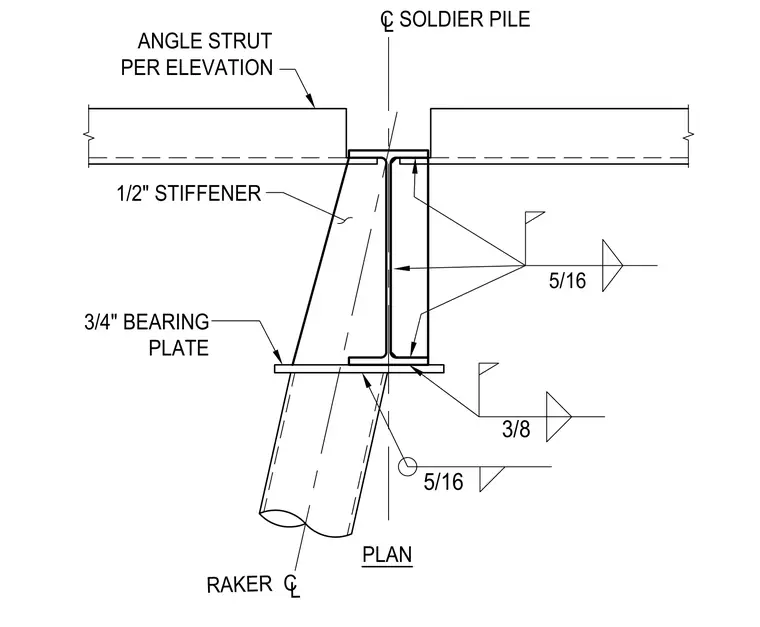

An angular raker framing into a soldier pile features a three-quarter-inch bearing plate and a half-inch stiffener plate welded to the flange. Five-sixteenth-inch and three-eighth-inch fillet welds secure the connection components to the structural steel soldier pile. An angle strut ties into the assembly per elevation requirements.
5/16 1/2" STIFFENER ANGLE STRUT PER ELEVATION C SOLDIER PILE L RAKER C L PLAN 3/4" BEARING PLATE 5/16 3/8
