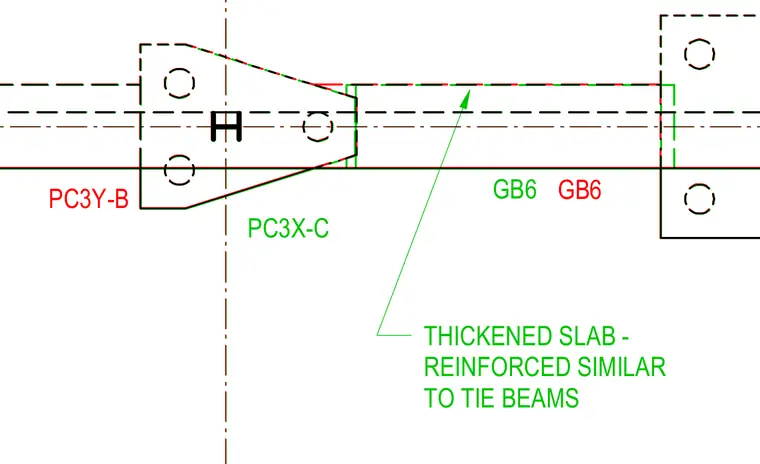

A thickened concrete slab reinforced similarly to tie beams, labeled as GB6 and connected via structural components PC3Y-B and PC3X-C. The slab transitions into grade beams with specified reinforcing details matching the adjacent framing.
