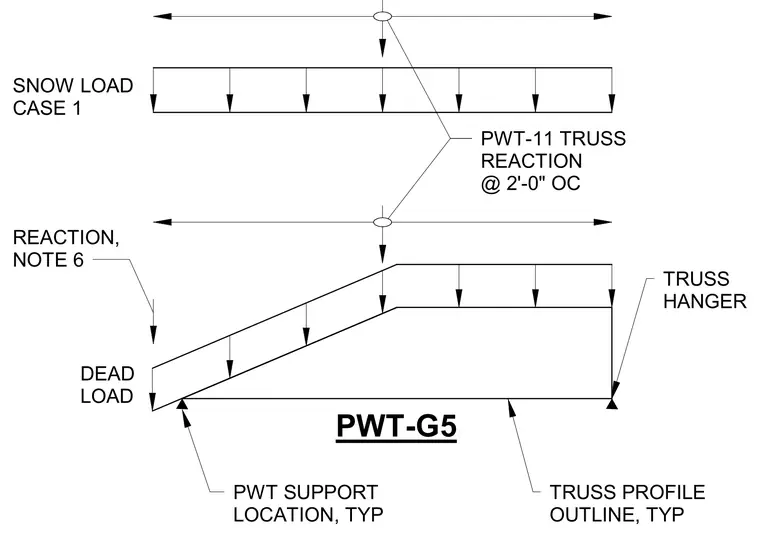

This diagram defines the structural loading conditions for a PWT-G5 truss, including snow load case one and dead load distributions. The snow load is applied across the span with a PWT-11 truss reaction occurring at two feet on center. The dead load profile follows the truss geometry, with support locations and truss hanger points identified as typical. The diagram provides the necessary load path information for structural analysis and connection design.
