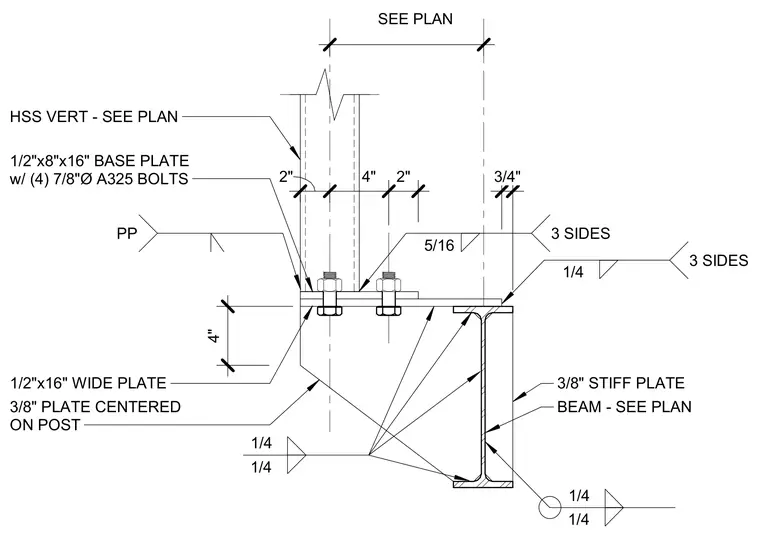

An HSS vertical post is anchored to a 1/2 inch by 8 inch by 16 inch base plate with four 7/8 inch diameter A325 bolts. The base plate rests upon a 1/2 inch by 16 inch wide plate supported by a steel beam sized per plan. A 3/8 inch stiffener plate is centered beneath the post and welded to the beam web with 1/4 inch fillet welds on three sides. The post base is secured to the wide plate with a 5/16 inch fillet weld on three sides, and the wide plate is connected to the beam top flange with 1/4 inch fillet welds.
3 SIDES 1/4 HSS VERT - SEE PLAN 3/4" 4" SEE PLAN 3/8" STIFF PLATE 1/4 1/4 1/4 1/4 1/2"x16" WIDE PLATE 3/8" PLATE CENTERED ON POST 2" 4" 2" 1/2"x8"x16" BASE PLATE w/ (4) 7/8"Ø A325 BOLTS 3 SIDES 5/16 PP BEAM - SEE PLAN
