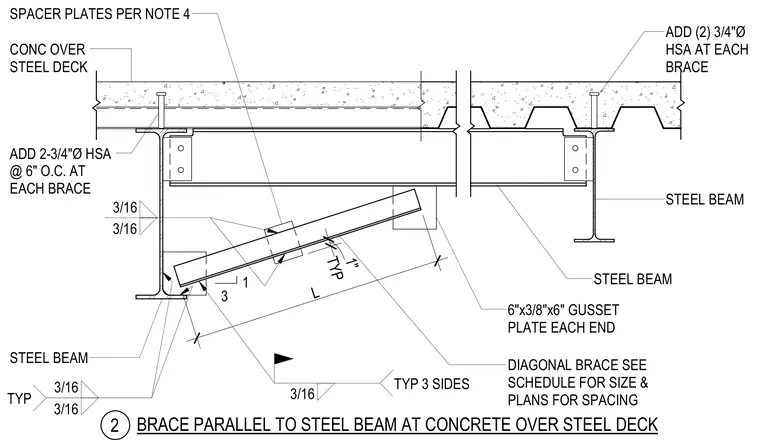

A diagonal brace runs parallel to a steel beam beneath a concrete-topped steel deck floor assembly. The diagonal brace connects to supporting steel beams using six-inch by three-eighths-inch by six-inch gusset plates welded on each end with three-sixteenths-inch fillet welds on three sides. One-inch spacer plates are installed per note four. Additional anchorage includes two three-quarters-inch diameter headed stud anchors at each brace location and two three-quarters-inch diameter headed stud anchors at six inches on center.
BRACE PARALLEL TO STEEL BEAM AT CONCRETE OVER STEEL DECK STEEL BEAM STEEL BEAM CONC OVER STEEL DECK 6"x3/8"x6" GUSSET PLATE EACH END DIAGONAL BRACE SEE SCHEDULE FOR SIZE & PLANS FOR SPACING 3/16 3/16 3/16 TYP 3 SIDES 3/16 3/16 TYP L TYP 1" SPACER PLATES PER NOTE 4 3 1 ADD (2) 3/4"Ø HSA AT EACH BRACE ADD 2-3/4"Ø HSA @ 6" O.C. AT EACH BRACE 2 STEEL BEAM
