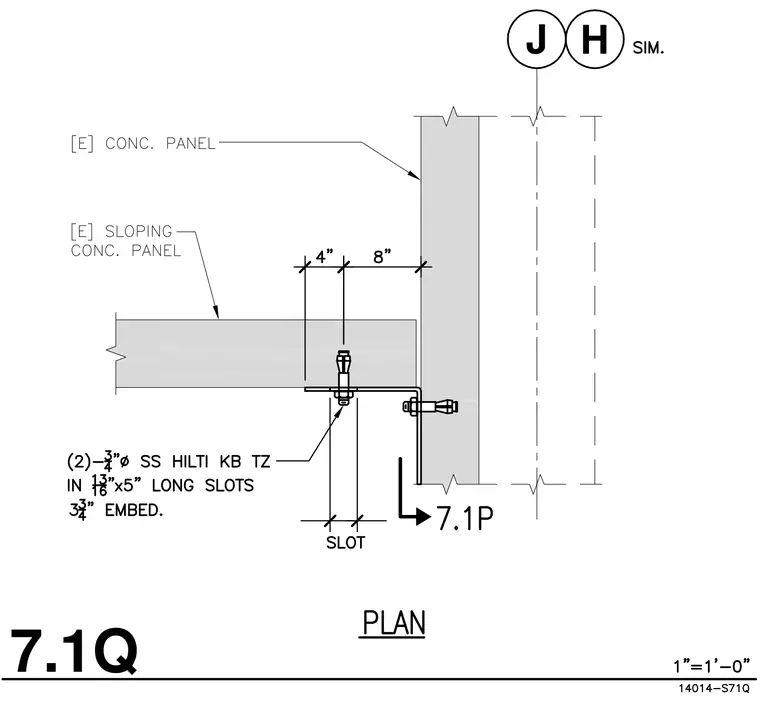

An existing sloping concrete panel bears upon an angle bracket anchored to an existing vertical concrete panel. The assembly is secured using two three-quarter-inch diameter stainless steel Hilti KB-TZ expansion anchors installed in thirteen-sixteenths by five-inch long slots with a three and three-quarter-inch embedment. An additional anchor secures the angle bracket back into the vertical concrete panel.
