Structural · S-28AJY

Typical Deck Bearing Angles At Columns (Where

Materials

Steel Glass / Glazing

Elements

Columns Beams Decks Bracing

Connections

Bracing Connection

About this detail

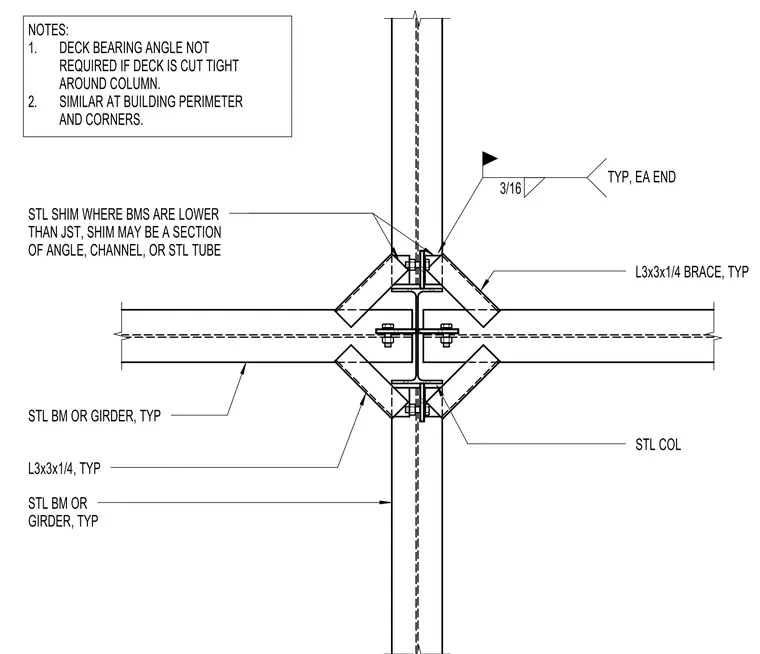

Steel beams or girders frame into a steel column with typical L3x3x1/4 braces positioned diagonally at the connection. A steel shim is used where beams are lower than the joist, consisting of a section of angle, channel, or steel tube. A three-sixteenths inch fillet weld is specified typically at each end. Notes indicate that the deck bearing angle is not required if the deck is cut tight around the column, and the detail is similar at the building perimeter and corners.
