Structural · S-27ZXJ

Gravity Column Interior Dropped Footing and Pedestal

Materials

Concrete

Elements

Columns Beams Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

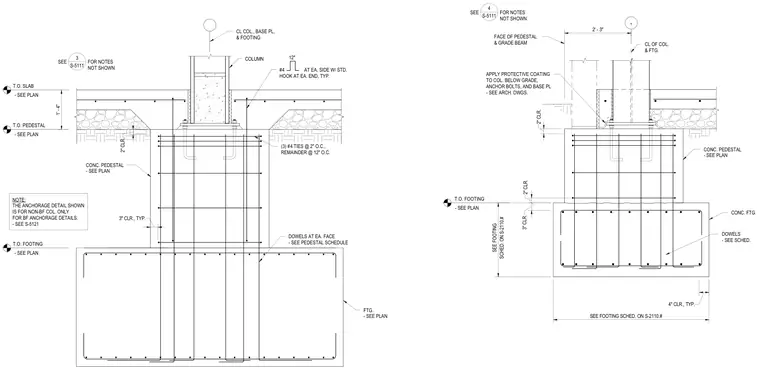

An interior gravity column is anchored via a base plate to a concrete pedestal, which bears upon a reinforced concrete footing designed per the structural schedule. The pedestal is reinforced vertically with dowels at each face and horizontally with three number four ties at two inches on center, followed by the remainder spaced at twelve inches on center. The footing maintains a three-inch typical clear cover at the bottom and sides, while the pedestal requires a two-inch clear cover. Protective coating is applied to the column below grade, anchor bolts, and base plate per architectural drawings. This anchorage detail applies strictly to non-lateral force resisting columns, with lateral force details deferred to separate sheet reference S-5121.
