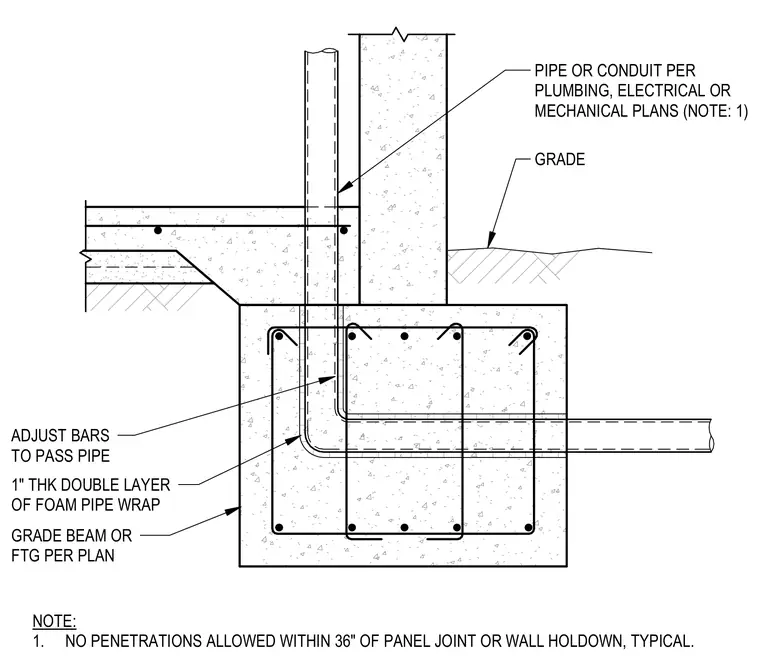

A pipe or conduit routes vertically through the adjacent slab and transitions via an elbow through the concrete grade beam or footing. A one-inch thick double layer of foam pipe wrap isolates the elbow within the concrete mass. Reinforcing bars in the footing are adjusted to pass the pipe without breaching minimum clearances. No penetrations are permitted within thirty-six inches of a panel joint or wall holdown.
PIPE OR CONDUIT PER PLUMBING, ELECTRICAL OR MECHANICAL PLANS (NOTE: 1) GRADE ADJUST BARS TO PASS PIPE 1" THK DOUBLE LAYER OF FOAM PIPE WRAP GRADE BEAM OR FTG PER PLAN NOTE: 1. NO PENETRATIONS ALLOWED WITHIN 36" OF PANEL JOINT OR WALL HOLDOWN, TYPICAL.
