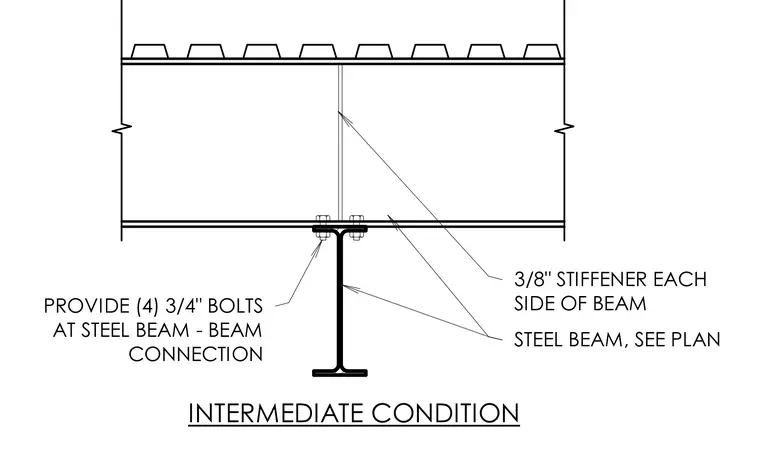

A steel framing assembly features a secondary steel beam connected to a supporting steel beam at an intermediate condition. The web of the supported beam is reinforced with three-eighths-inch stiffener plates on each side. Four three-quarter-inch bolts secure the steel beam to beam connection.
STEEL BEAM, SEE PLAN 3/8" STIFFENER EACH SIDE OF BEAM INTERMEDIATE CONDITION PROVIDE (4) 3/4" BOLTS AT STEEL BEAM - BEAM CONNECTION
