An L6x6x1/2 angle serves as a slotted ledger connected to an embed plate via a 1/2-inch by 8-inch by 8-inch end plate, secured with quarter-inch fillet welds on three sides. The ledger is anchored with a half-inch epoxy anchor spaced at two feet on center, installed finger-tight with distressed threads to allow movement at the seismic gap. A one-and-a-half-inch seismic gap is maintained, and panels are left unattached at the building corner. The roof deck ties into the assembly as specified per plan, while embed plates and epoxy anchors follow standard project details.

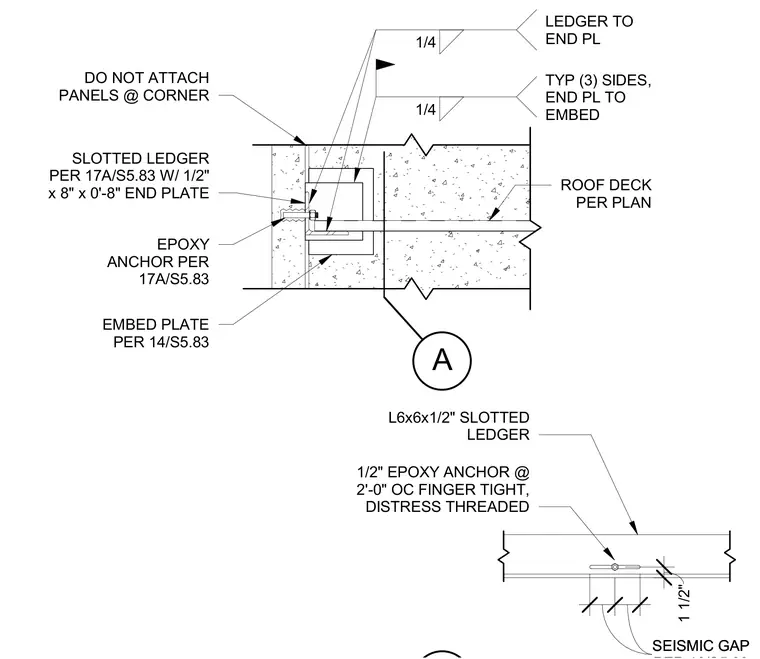

1/2" EPOXY ANCHOR @ 2'-0" OC FINGER TIGHT, DISTRESS THREADED L6x6x1/2" SLOTTED LEDGER ROOF DECK PER PLAN EMBED PLATE PER 14/S5.83 DO NOT ATTACH PANELS @ CORNER SLOTTED LEDGER PER 17A/S5.83 W/ 1/2" x 8" x 0'-8" END PLATE EPOXY ANCHOR PER 17A/S5.83 A SEISMIC GAP SEISMIC GAP 1 1/2" 1/4 TYP (3) SIDES, END PL TO EMBED 1/4 LEDGER TO END PL
