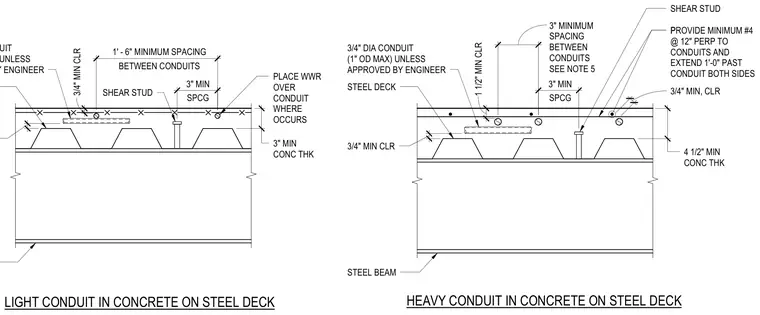

Light and heavy electrical conduits are embedded in a concrete slab cast over a metal steel deck supported by a steel beam. The light conduit installation requires a three-inch minimum concrete thickness with a three-quarter-inch diameter conduit having a three-quarter-inch outside diameter maximum unless approved by the engineer, accompanied by welded wire reinforcement placed over the conduit where it occurs. The heavy conduit installation requires a four-and-a-half-inch minimum concrete thickness with a three-quarter-inch diameter conduit having a one-inch outside diameter maximum, requiring a minimum number four reinforcing bar at twelve inches on center perpendicular to the conduits and extending one foot past the conduit on both sides. Both configurations specify minimum clearances of three-quarters of an inch to one and a half inches, shear studs welded to the supporting steel beam, and minimum three-inch spacing between conduits with one-foot six-inch minimum spacing requirements.
3" LIGHT CONDUIT IN CONCRETE ON STEEL DECK HEAVY CONDUIT IN CONCRETE ON STEEL DECK 3/4" 3/4" 18" 6" PLACE WWR OVER CONDUIT WHERE OCCURS 3" MIN SPCG 1' - 6" MINIMUM SPACING BETWEEN CONDUITS 3" MIN CONC THK 1/2" DIA CONDUIT (3/4" OD MAX) UNLESS APPROVED BY ENGINEER SHEAR STUD 3/4" MIN CLR 4 1/2" 1 1/2" 3/4" 6" 6" 3" MIN SPCG 3" MINIMUM SPACING BETWEEN CONDUITS SEE NOTE 5 4 1/2" MIN CONC THK 3/4" DIA CONDUIT (1" OD MAX) UNLESS APPROVED BY ENGINEER 3/4" MIN CLR STEEL BEAM 1 1/2" MIN CLR 7/8" 3/4" MIN, CLR SHEAR STUD PROVIDE MINIMUM #4 @ 12" PERP TO CONDUITS AND EXTEND 1'-0" PAST CONDUIT BOTH SIDES P STEEL DECK
