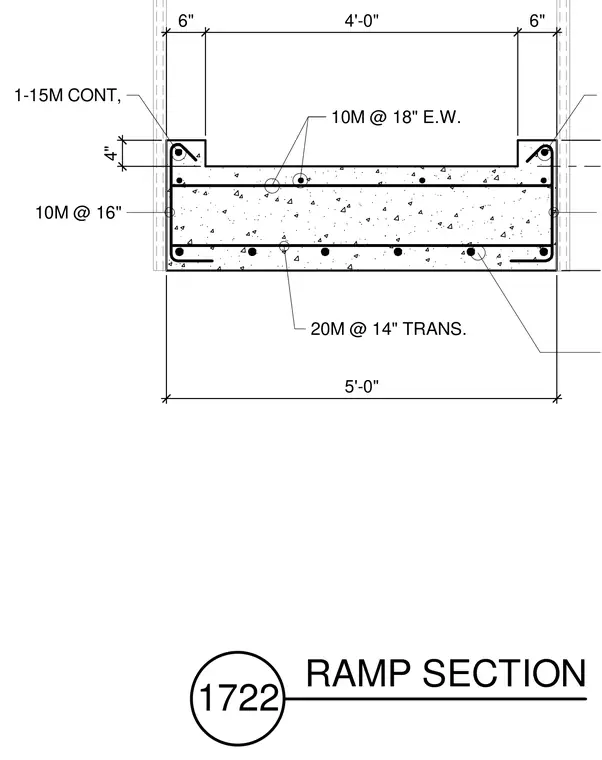

This structural section shows a five-foot-wide concrete ramp with six-inch raised curbs on each side. The assembly is reinforced with ten-millimeter bars spaced at eighteen inches each way, twenty-millimeter transverse bars spaced at fourteen inches, ten-millimeter bars spaced at sixteen inches on the sides, and one fifteen-millimeter continuous bar at each upper corner.
4" 6" 4'-0" 6" 5'-0" 10M @ 18" E.W. 20M @ 14" TRANS. 10M @ 16" 1-15M CONT, 1722 RAMP SECTION
