Lighting Control System Wiring Diagram

Elements

About this detail

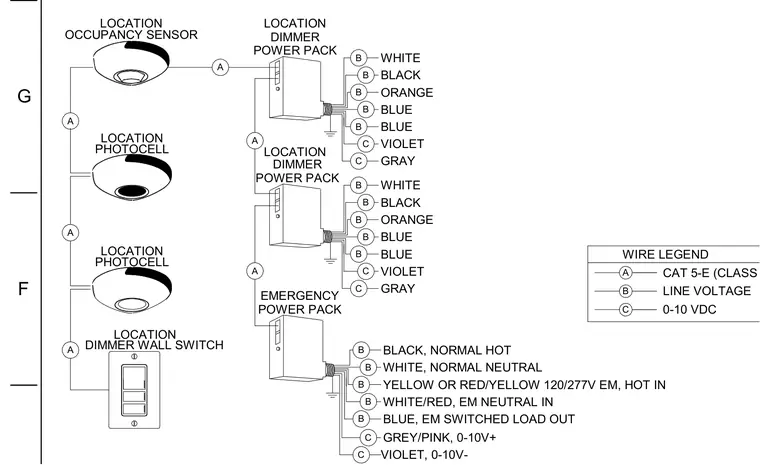

An emergency power pack and standard dimmer power packs connect to low-voltage occupancy sensors and photocells via Category 5-E cables. Line voltage and 0-10 VDC control wires interface with the power packs for standard and emergency lighting circuits. A dimmer wall switch connects through the control network to manage room lighting levels.
