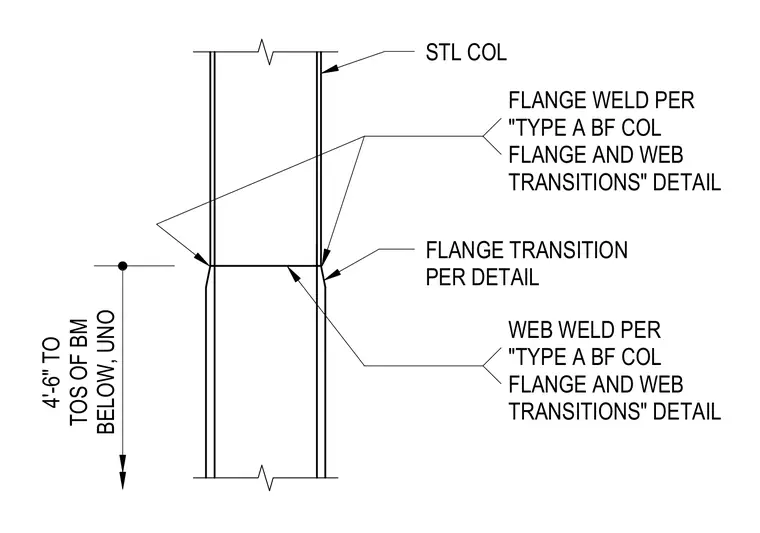

A structural detail for a steel column transition connection involving specific flange and web welds per designated detail references. The transition utilizes tapered flange profiles as detailed, welded to the column components. A vertical dimension of four feet six inches is maintained to the top of the steel beam below unless otherwise noted.
4'-6" TO TOS OF BM BELOW, UNO STL COL FLANGE WELD PER "TYPE A BF COL FLANGE AND WEB TRANSITIONS" DETAIL WEB WELD PER "TYPE A BF COL FLANGE AND WEB TRANSITIONS" DETAIL FLANGE TRANSITION PER DETAIL
