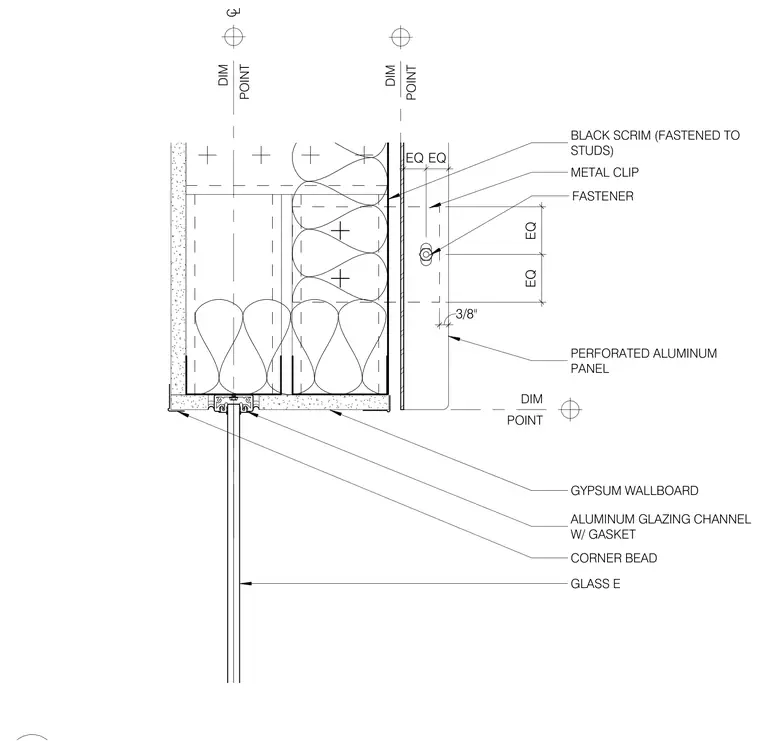

Perforated aluminum panels attach via metal clips and three-eighths-inch fasteners to framing backed by a black scrim fastened to studs. The underside is finished with gypsum wallboard and corner beads. An aluminum glazing channel with gasket secures the glass element extending from the soffit.
DIM POINT EQ EQ CL DIM POINT EQ EQ GLASS E ALUMINUM GLAZING CHANNEL W/ GASKET CORNER BEAD GYPSUM WALLBOARD PERFORATED ALUMINUM PANEL METAL CLIP BLACK SCRIM (FASTENED TO STUDS) DIM POINT 3/8" FASTENER
