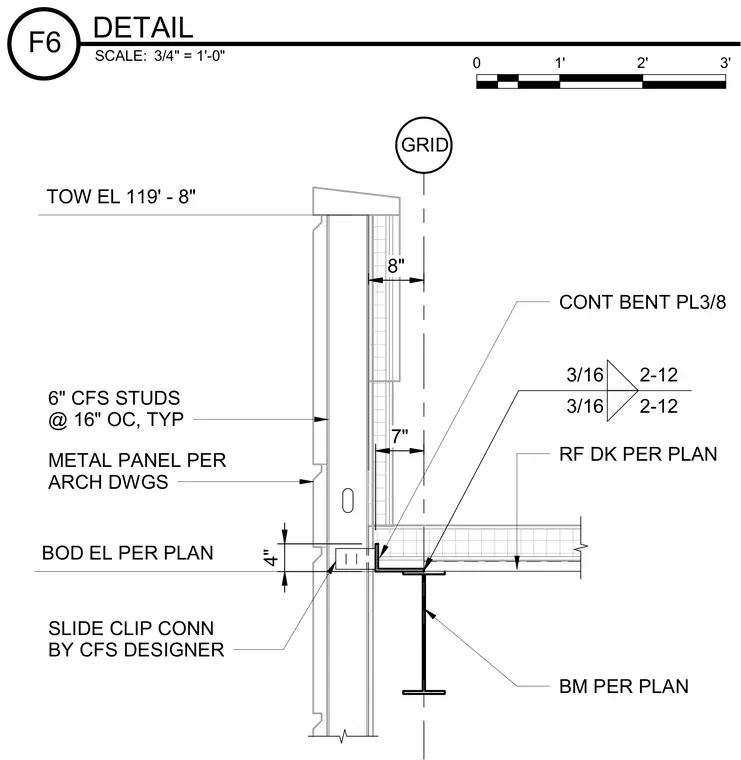

Cold-formed steel studs at 16 inches on center support exterior metal panels per architectural drawings. A continuous 3/8-inch bent plate connects the cold-formed steel slide clip to the structural steel beam sized per plan. The roof deck bears per plan at the structural beam level. Elevation markers indicate top of wall elevation at 119 feet 8 inches and bottom of deck elevation per plan at 115 feet 4 and 1/2 inches.
8" 3/16 2-12 3/16 2-12 7" 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY CFS DESIGNER GRID 4" TOW EL 119' - 8" BOD EL PER PLAN 115' - 4 1/2" SCALE: 3/4" = 1'-0" F6 DETAIL 0 1' 2' 3'
