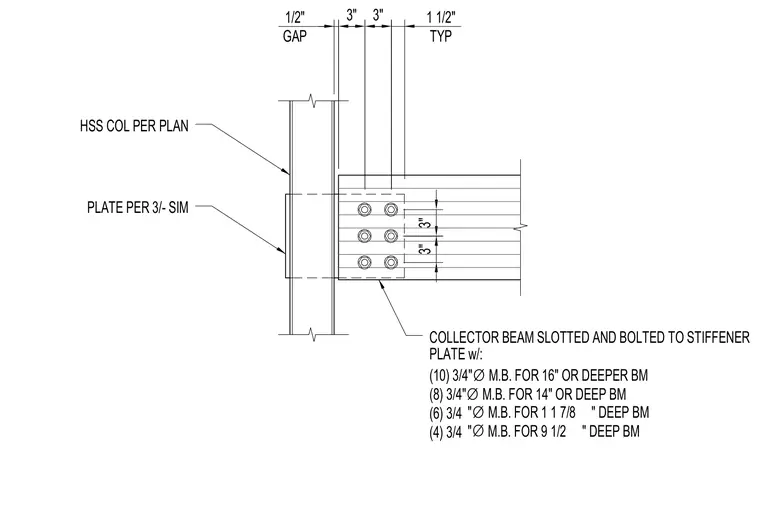

A wood collector beam is slotted and bolted to a stiffener plate welded or secured to a hollow structural section column per plan, maintaining a one-half inch gap from the column face. The bolted connection utilizes three-quarter inch diameter machine bolts configured in quantities corresponding to the beam depth, ranging from four bolts for nine-and-a-half-inch beams up to ten bolts for beams sixteen inches or deeper. Standard spacing dimensions of three inches and one-and-a-half inches apply to the bolt pattern.
3" 3" 3" 3" 1 1/2" TYP 1/2" GAP COLLECTOR BEAM SLOTTED AND BOLTED TO STIFFENER PLATE w/: (10) 3/4" ∅ M.B. FOR 16" OR DEEPER BM (8) 3/4" ∅ M.B. FOR 14" OR DEEP BM (6) 3/4 " ∅ M.B. FOR 1 1 7/8 " DEEP BM (4) 3/4 " ∅ M.B. FOR 9 1/2 " DEEP BM HSS COL PER PLAN PLATE PER 3/- SIM
