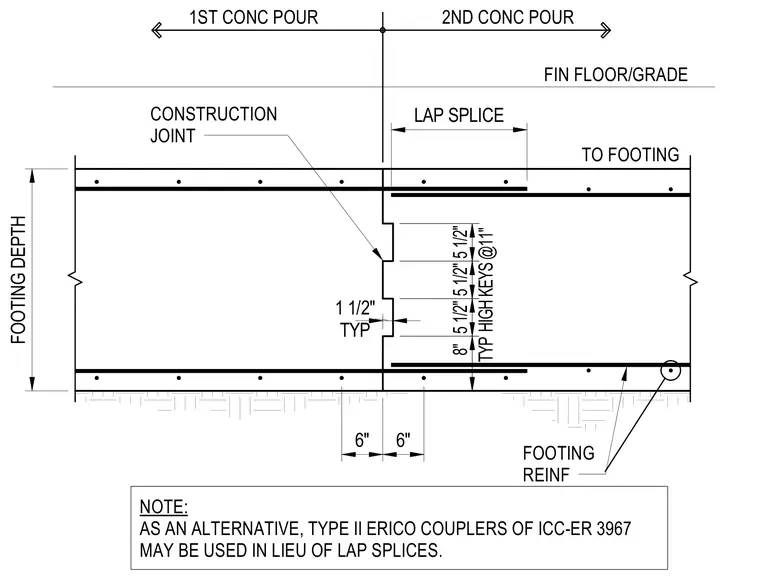

A concrete continuous footing construction joint manages sequential pours with a keyed interface and reinforcing steel lap splices. The joint includes five and one-half inch high keys spaced at eleven inches typically, with a one and one-half inch typical depth. Rebar reinforcement extends across the joint with lap splices detailed for structural continuity. Type II Erico couplers complying with ICC-ER 3967 may be used as an alternative in lieu of standard lap splices.
CONSTRUCTION JOINT FOOTING REINF 1ST CONC POUR 2ND CONC POUR FIN FLOOR/GRADE TO FOOTING NOTE: AS AN ALTERNATIVE, TYPE II ERICO COUPLERS OF ICC-ER 3967 MAY BE USED IN LIEU OF LAP SPLICES. FOOTING DEPTH LAP SPLICE 6" 6" TYP 8" 5 1/2" HIGH KEYS @11" 5 1/2" 5 1/2" TYP 1 1/2"
