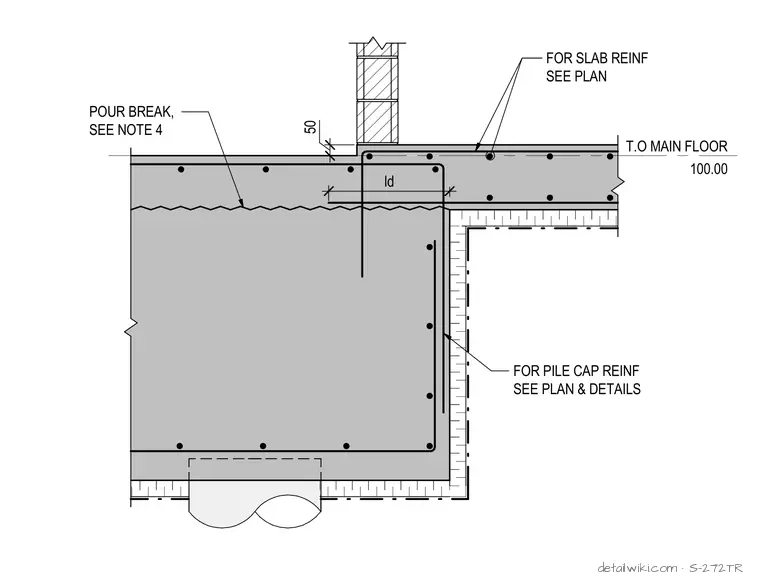

The drawing illustrates a concrete foundation detail including a top of main floor elevation marker, slab reinforcement details, pile cap reinforcement callout, and a pour break. A vertical dimension of 50 indicates a step or offset in the concrete assembly. Reinforcement bars are shown extending into the slab with development length ld.
Text on the drawing
T.O MAIN FLOOR 100.00 50 POUR BREAK, SEE NOTE 4 FOR SLAB REINF SEE PLAN ld FOR PILE CAP REINF SEE PLAN & DETAILS
