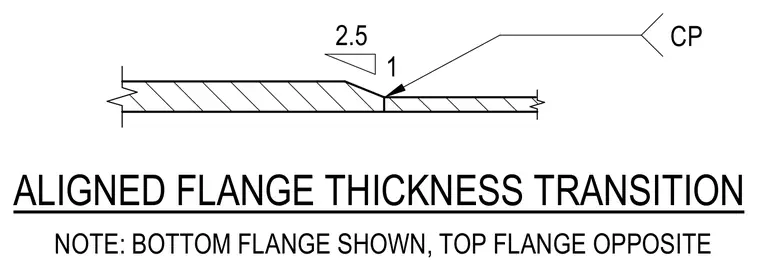

A thicker structural steel flange transitions to a thinner flange using a two-and-a-half to one slope taper. The butt joint is connected with a complete joint penetration weld. The bottom flange transition is shown with the top flange configuration opposite.
ALIGNED FLANGE THICKNESS TRANSITION CP NOTE: BOTTOM FLANGE SHOWN, TOP FLANGE OPPOSITE 2.5 1
