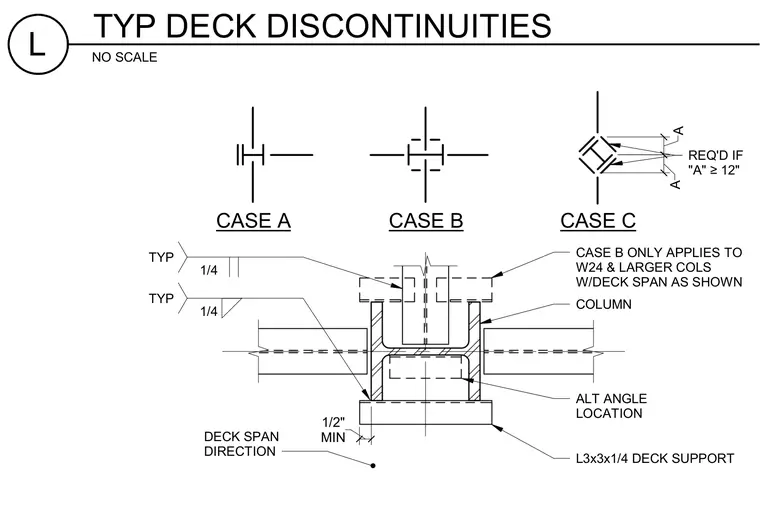

Metal deck discontinuities at steel columns are detailed for three distinct layout cases using an L3x3x1/4 deck support angle. Case B applies exclusively to W24 and larger columns with the indicated deck span direction, maintaining a one-half inch minimum clearance. The deck support angle connects via typical one-quarter inch fillet welds. Additional angles are provided at alternative locations per the framing layout.
REQ'D IF "A" ≥12" A A CASE B ONLY APPLIES TO W24 & LARGER COLS W/DECK SPAN AS SHOWN ALT ANGLE LOCATION L3x3x1/4 DECK SUPPORT DECK SPAN DIRECTION 1/4 TYP COLUMN MIN 1/2" 1/4 TYP CASE A CASE B CASE C NO SCALE L TYP DECK DISCONTINUITIES
