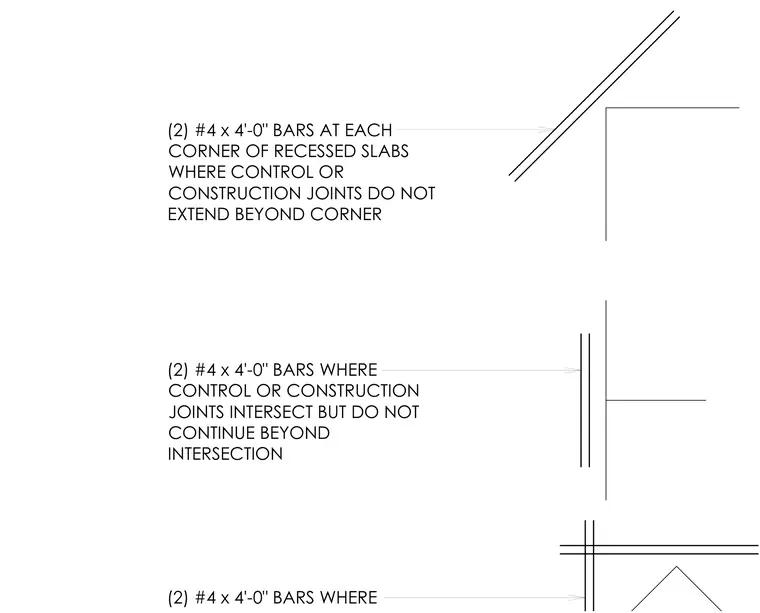

Two number four reinforcing bars measuring four feet zero inches in length are placed at each corner of recessed slabs where control or construction joints do not extend beyond the corner. Similar supplemental reinforcement is detailed for locations where control or construction joints intersect but do not continue beyond the intersection.
(2) #4 x 4'-0" BARS AT EACH CORNER OF RECESSED SLABS WHERE CONTROL OR CONSTRUCTION JOINTS DO NOT EXTEND BEYOND CORNER (2) #4 x 4'-0" BARS WHERE CONTROL OR CONSTRUCTION JOINTS INTERSECT BUT DO NOT CONTINUE BEYOND INTERSECTION (2) #4 x 4'-0" BARS WHERE
