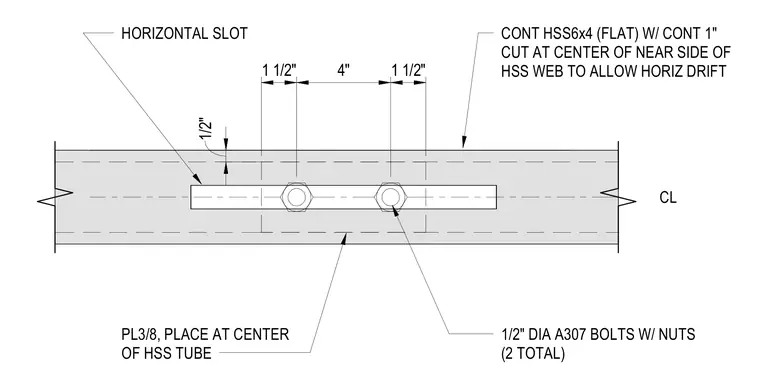

A continuous hollow structural section member, designated as HSS6x4 flat, features a one-inch continuous cut at the center of the near side web to allow horizontal drift. A 3/8-inch steel plate is placed at the center of the hollow structural section tube with a horizontal slot measuring 1/2-inch high. Two 1/2-inch diameter ASTM A307 bolts with nuts secure the assembly through the slot at a four-inch spacing with 1 1/2-inch end distances from center.
CL 1/2" DIA A307 BOLTS W/ NUTS (2 TOTAL) PL3/8, PLACE AT CENTER OF HSS TUBE CONT HSS6x4 (FLAT) W/ CONT 1" CUT AT CENTER OF NEAR SIDE OF HSS WEB TO ALLOW HORIZ DRIFT 1 1/2" 4" 1 1/2" 1/2" HORIZONTAL SLOT
