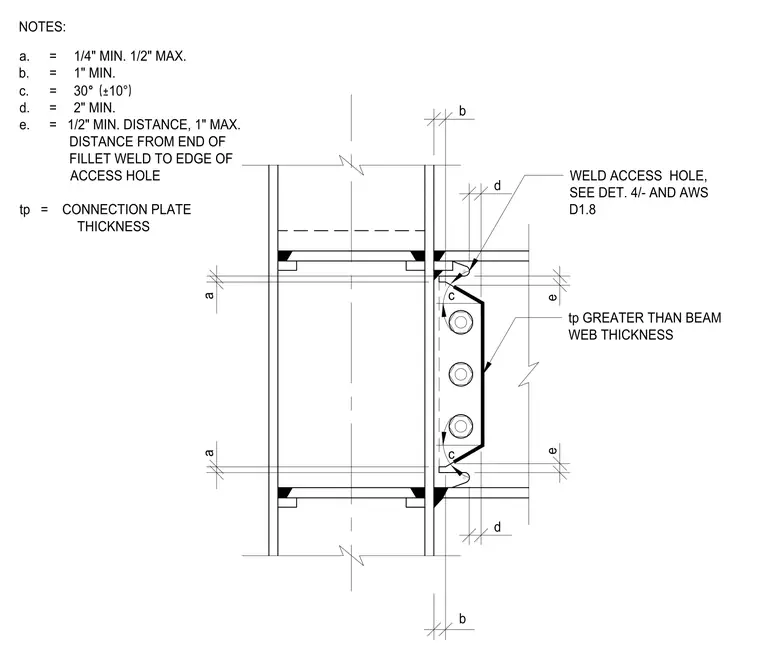

Critical dimensions for a WUF-W moment connection, specifically weld access hole geometry and connection plate configuration. Connection plate thickness (tp) exceeds beam web thickness. Weld access hole construction conforms to AWS D1.8 standards. Dimensional constraints include a 1/4 inch minimum and 1/2 inch maximum weld access hole profile, 1 inch minimum clearance, 30 degree angle with a 10 degree tolerance, 2 inch minimum dimension, and a 1/2 inch minimum to 1 inch maximum distance from the end of the fillet weld to the edge of the access hole.
