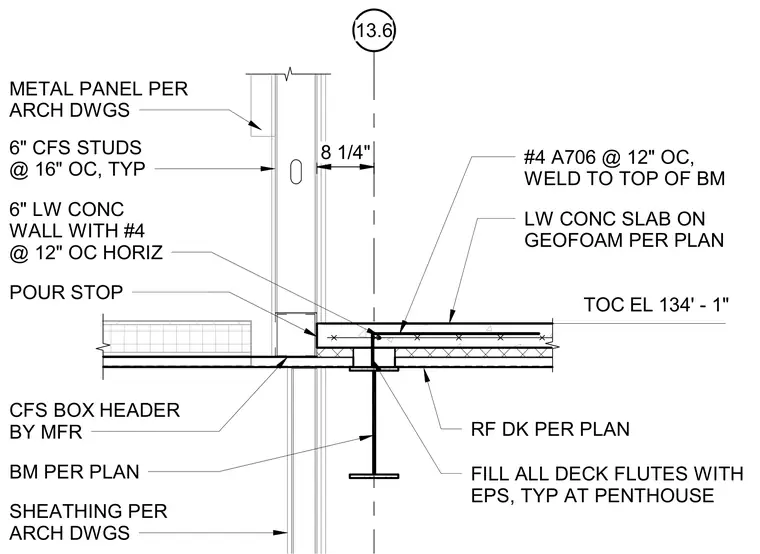

A roof deck assembly features a lightweight concrete slab cast over geofoam and a roof deck with all flutes filled with expanded polystyrene at the penthouse. A supporting steel beam carries the deck, with a number four A706 reinforcing bar at twelve inches on center welded to the top of the beam. A pour stop is provided alongside a cold-formed steel box header by the manufacturer. The exterior wall consists of six-inch cold-formed steel studs at sixteen inches on center supporting sheathing and metal panels per architectural drawings, adjacent to a six-inch lightweight concrete wall reinforced with number four bars at twelve inches on center horizontally.
13.6 LW CONC SLAB ON GEOFOAM PER PLAN RF DK PER PLAN 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS FILL ALL DECK FLUTES WITH EPS, TYP AT PENTHOUSE #4 A706 @ 12" OC, WELD TO TOP OF BM 6" LW CONC WALL WITH #4 @ 12" OC HORIZ BM PER PLAN POUR STOP SHEATHING PER ARCH DWGS TOC EL 134' - 1" 8 1/4" CFS BOX HEADER BY MFR
