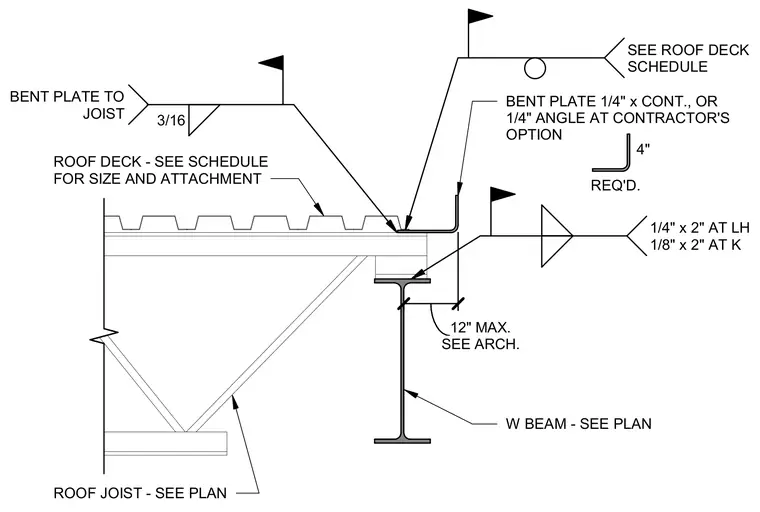

A continuous one-quarter-inch bent plate or one-quarter-inch angle at the contractor's option caps the roof deck edge bearing on a wide-flange beam and roof joist sized per plan. The bent plate connects to the joist with a three-sixteenth-inch weld, and the roof deck is attached per the roof deck schedule. A weld symbol indicates connection detailing with a field weld flag, and a maximum twelve-inch dimension coordinates with architectural requirements.
BENT PLATE 1/4" x CONT., OR 1/4" ANGLE AT CONTRACTOR'S OPTION W BEAM - SEE PLAN ROOF JOIST - SEE PLAN 4" REQ'D. SEE ARCH. 12" MAX. 3/16 BENT PLATE TO JOIST SEE ROOF DECK SCHEDULE 1/4" x 2" AT LH 1/8" x 2" AT K ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT
