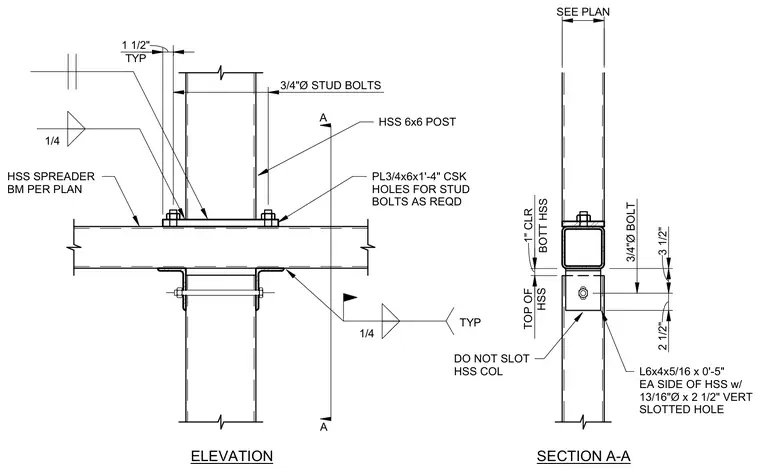

An HSS 6x6 post connects to an HSS spreader beam sized per plan with a 3/4-inch plate having countersunk holes for stud bolts. Angles measuring L6x4x5/16 by 0'-5" attach to each side of the hollow structural section with 13/16-inch diameter by 2 1/2-inch vertical slotted holes. A 3/4-inch diameter bolt secures the lower connection, with the hollow structural section column left unslotted. Fillet welds of 1/4-inch size are typically applied at connection points as indicated.
L6x4x5/16 x 0'-5" EA SIDE OF HSS w/ 13/16"Ø x 2 1/2" VERT SLOTTED HOLE HSS SPREADER BM PER PLAN HSS 6x6 POST PL3/4x6x1'-4" CSK HOLES FOR STUD BOLTS AS REQD ELEVATION 3/4"Ø BOLT DO NOT SLOT HSS COL SECTION A-A 1/4 1/4 TYP A A TOP OF HSS 3/4"Ø STUD BOLTS TYP 1 1/2" SEE PLAN BOTT HSS 1" CLR 2 1/2" 3 1/2"
