The assembly consists of 6-inch by 18-gauge metal studs spaced at 16 inches on center forming the parapet wall, capped with a continuous 6-inch by 16-gauge track. The parapet is laterally supported by a diagonal metal stud brace matching the wall framing and spaced at 16 inches on center. The diagonal brace connects to a continuous track anchored to the metal roof deck with two number 10 self-tapping screws at 8 inches on center and secured to the brace with two number 10 self-tapping screws. The base of the parapet wall bears on a continuous 6-inch by 16-gauge track fastened with number 10 self-tapping screws at 8 inches on center, supported by a steel beam sized per plan. Exterior sheathing is provided per architectural specifications.

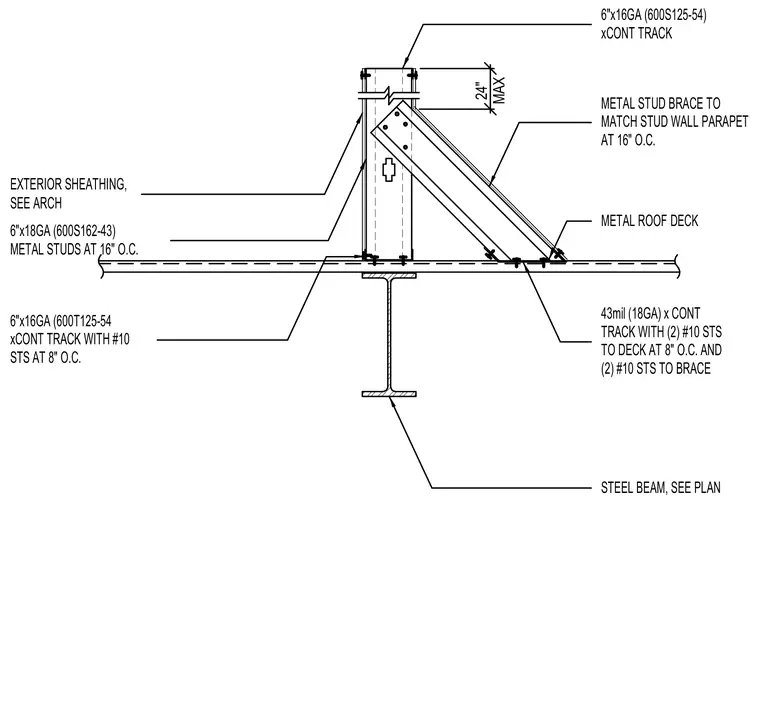

43mil (18GA) x CONT TRACK WITH (2) #10 STS TO DECK AT 8" O.C. AND (2) #10 STS TO BRACE METAL ROOF DECK STEEL BEAM, SEE PLAN 6"x16GA (600S125-54) xCONT TRACK METAL STUD BRACE TO MATCH STUD WALL PARAPET AT 16" O.C. EXTERIOR SHEATHING, SEE ARCH 6"x18GA (600S162-43) METAL STUDS AT 16" O.C. 6"x16GA (600T125-54 xCONT TRACK WITH #10 STS AT 8" O.C. 24" MAX
