Structural · S-25ZS3

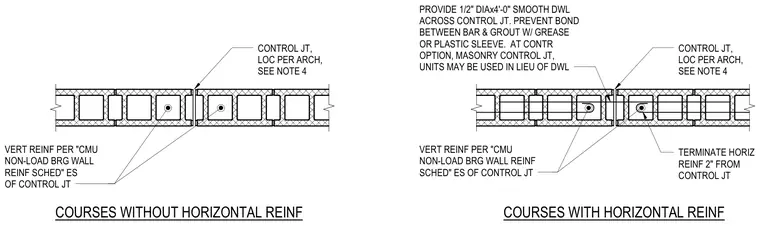

CMU Wall Control Joint Details with and without Horizontal Reinforcement

Materials

Elements

About this detail

Masonry control joints are located per architectural drawings and detailed with vertical reinforcement on each side. At courses with horizontal reinforcement, bars terminate two inches from the control joint and a one-half inch diameter by four-foot long smooth dowel spans across the joint. Bond between the dowel and grout is prevented using a grease or plastic sleeve, or alternatively, masonry control joint units may be used.
