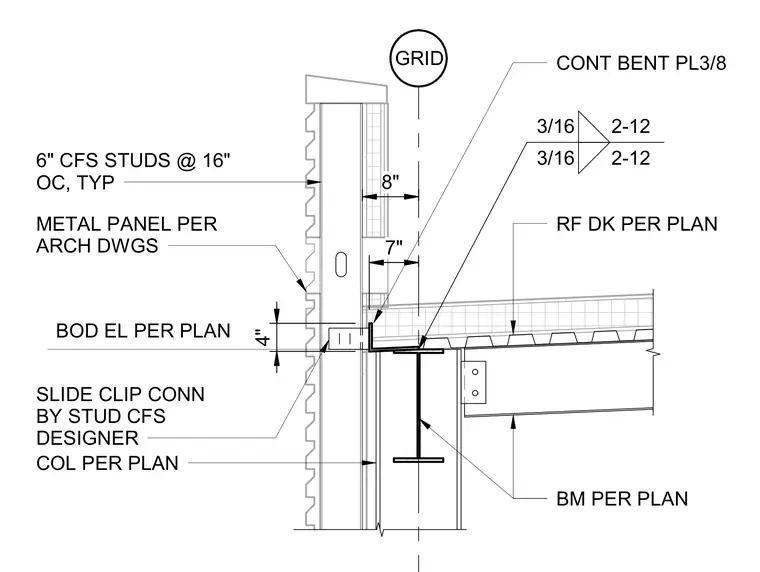

Six-inch cold-formed steel studs at sixteen inches on center support exterior metal panels per architectural drawings. A continuous three-eighths-inch bent plate connects back to the structural steel beam and roof deck. A slide clip connection designed by the cold-formed steel designer ties the wall framing to the structure. A column is located per plan with dimensions referencing the grid line.
8" 3/16 2-12 3/16 2-12 7" BOD EL PER PLAN 151' - 1" 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY STUD CFS DESIGNER GRID 4" COL PER PLAN
