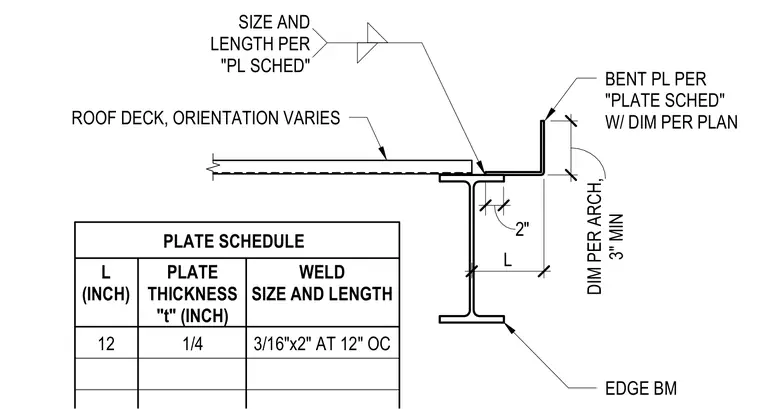

Roof deck bears on a structural steel edge beam with a varying orientation, anchored by a bent plate sized per the plate schedule and architectural dimensions. The bent plate connects to the steel member with a three-sixteenths-inch by two-inch weld at twelve inches on center, with dimensions and lengths governed by the plate schedule. The plate thickness is one-quarter inch with a length of twelve inches as detailed in the schedule.
SIZE AND LENGTH PER "PL SCHED" ROOF DECK, ORIENTATION VARIES BENT PL PER "PLATE SCHED" W/ DIM PER PLAN EDGE BM PLATE SCHEDULE L (INCH) PLATE THICKNESS "t" (INCH) 2" 6" 12 1/4 8" L DIM PER ARCH, 3" MIN WELD SIZE AND LENGTH 3/16"x2" AT 12" OC
