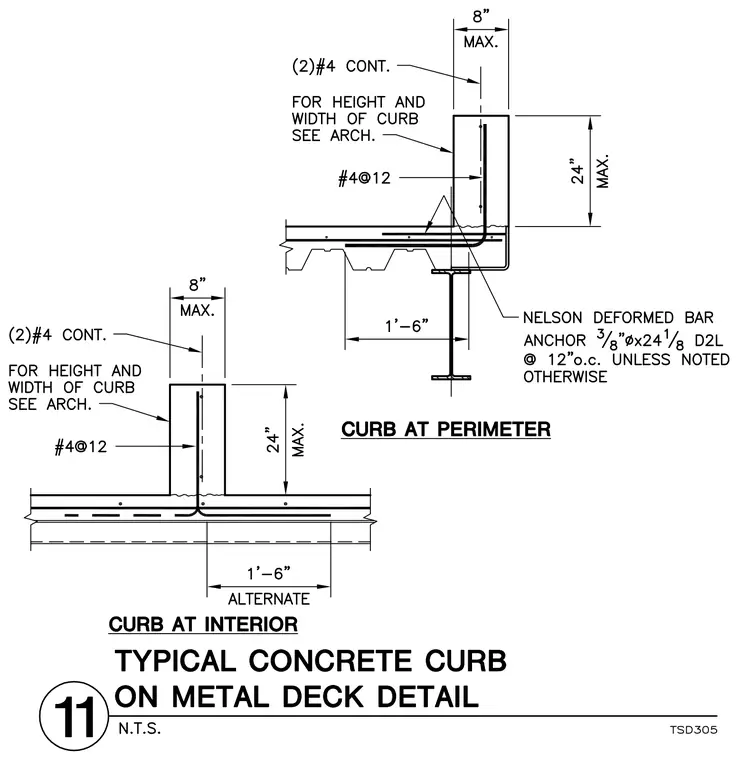

Typical concrete curb configurations on metal deck occur at perimeter and interior locations. The perimeter condition details a concrete curb bearing on a structural steel beam supporting a metal deck slab, reinforced with two continuous number four rebars at the top and number four rebars at twelve inches on center vertically. Nelson deformed bar anchors measuring three-eighths inch diameter by twenty-four and one-eighth inches long type D2L are spaced at twelve inches on center unless noted otherwise. The interior condition has a concrete curb on a metal deck slab without an underlying beam, similarly reinforced with two continuous number four rebars and vertical number four rebars at twelve inches on center. Curb dimensions specify an eight-inch maximum width and a twenty-four-inch maximum height, with curb height and width coordinated per architectural drawings.
