Structural · S-25MTD

Tilt-Up Concrete Panel Wall Opening Reinforcing Details

Materials

Concrete

Elements

Beams Walls Foundations / Footings Arches Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

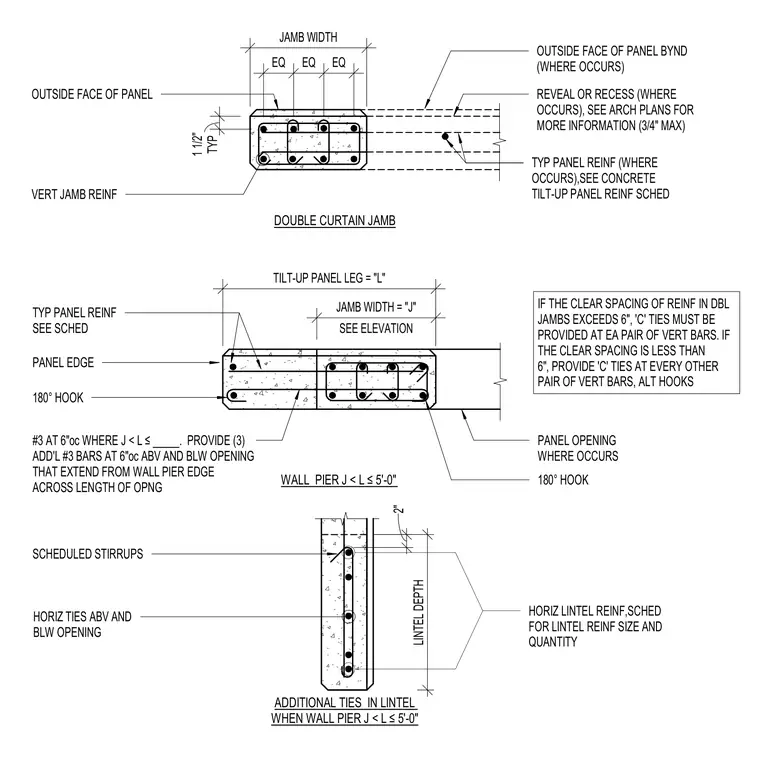

Concrete tilt-up panel wall reinforcing at door and window openings configures double curtain jambs, wall piers, and lintels. Vertical jamb reinforcing consists of specified bar sizes with 180-degree hooks, incorporating 'C' ties provided at each pair of vertical bars when clear spacing exceeds six inches, or at every other pair with alternating hooks when spacing is less than six inches. Additional three number-three bars spaced at six inches on center are positioned above and below the opening, extending from the wall pier edge across the full length of the opening. Scheduled stirrups and horizontal ties provide lintel reinforcement per the structural schedule for size and quantity.
