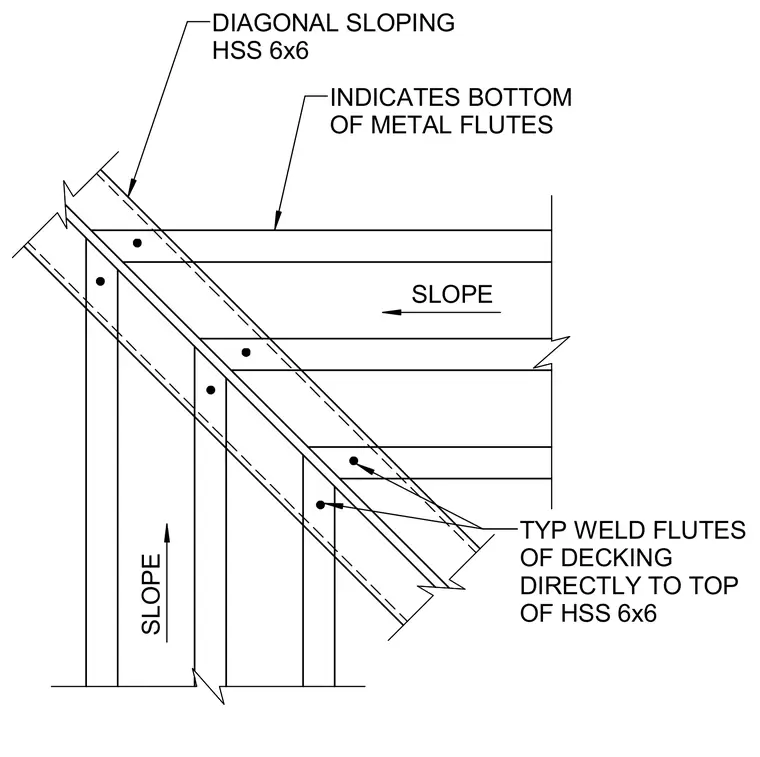

The metal decking flutes bear directly on and weld to the top of a diagonal sloping hollow structural section 6x6 member. The bottom of the metal flutes aligns with the top surface of the structural steel tube.
INDICATES BOTTOM OF METAL FLUTES TYP WELD FLUTES OF DECKING DIRECTLY TO TOP OF HSS 6x6 DIAGONAL SLOPING HSS 6x6 SLOPE SLOPE
