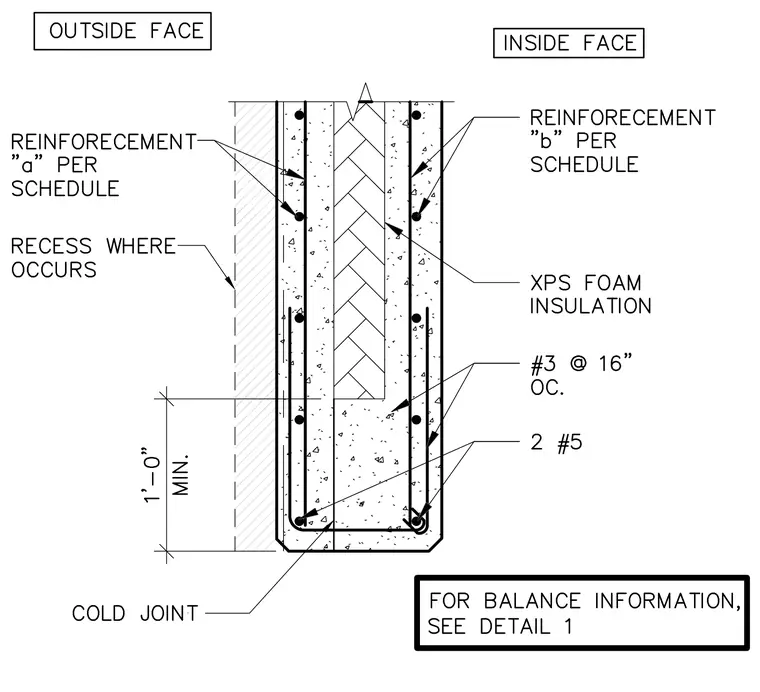

An insulated concrete wall assembly features extruded polystyrene foam insulation sandwiched between concrete wythes. The outside face includes reinforcement "a" per schedule and a recess where applicable. The inside face contains reinforcement "b" per schedule. A cold joint is detailed with two number five horizontal bars at the bottom and number three ties spaced at sixteen inches on center with a minimum one-foot lap requirement.
