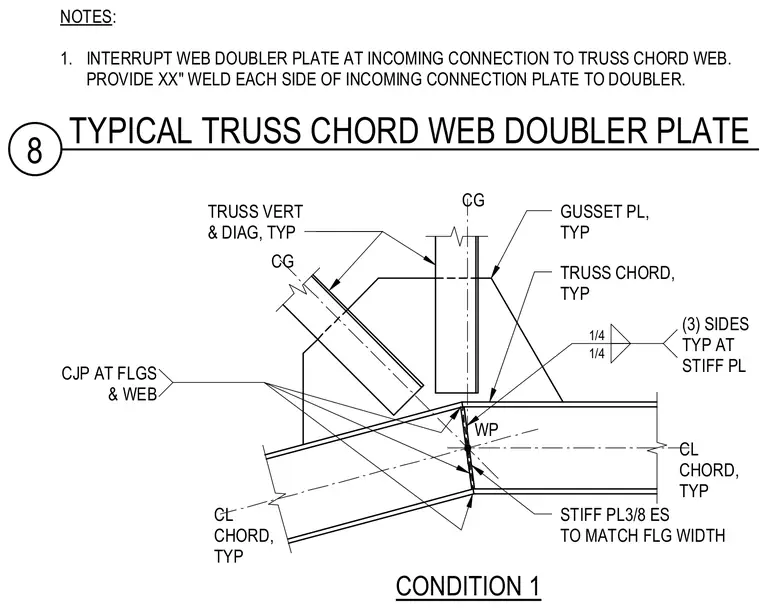

This structural steel connection features typical truss vertical and diagonal web members framing into a hollow structural section chord with a gusset plate and a web doubler plate. The web doubler plate interrupts at the incoming connection to the chord web, with a specified weld length on each side of the connection plate. A three-eighths-inch thick stiffener plate is welded to match the flange width using quarter-inch fillet welds on three sides. Complete joint penetration welds are specified at the flanges and web intersection.
NOTES: 1. INTERRUPT WEB DOUBLER PLATE AT INCOMING CONNECTION TO TRUSS CHORD WEB. PROVIDE XX" WELD EACH SIDE OF INCOMING CONNECTION PLATE TO DOUBLER. CONDITION 1 TRUSS VERT & DIAG, TYP GUSSET PL, TYP TRUSS CHORD, TYP CL CHORD, TYP WP CJP AT FLGS & WEB CG CG CL CHORD, TYP (3) SIDES TYP AT STIFF PL 1/4 1/4 STIFF PL3/8 ES TO MATCH FLG WIDTH 8 TYPICAL TRUSS CHORD WEB DOUBLER PLATE
