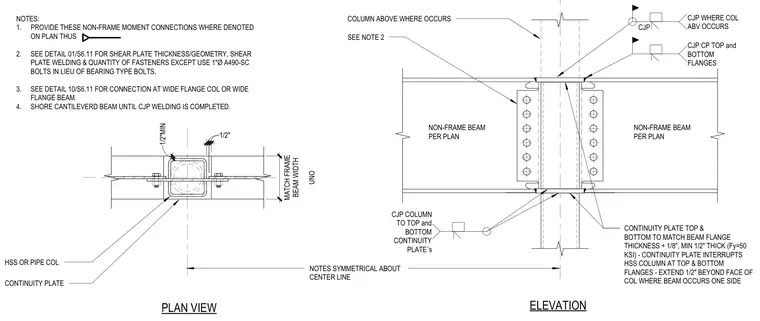

A non-frame beam moment connection to a hollow structural section or pipe column uses top and bottom continuity plates and a bolted shear plate connection. The continuity plates match the beam flange thickness plus one-eighth inch with a minimum thickness of one-half inch and yield strength of fifty kilopounds per square inch, interrupting the column at the top and bottom flanges and extending one-half inch beyond the face of the column where the beam occurs on only one side. Complete joint penetration welds attach the column to the top and bottom continuity plates and the beam flanges. Shear connections utilize one-inch diameter American Society for Testing and Materials A490 slip-critical bolts in lieu of bearing-type bolts, with plate sizing and fastener quantities referenced to plan details. Cantilevered beams require shoring until complete joint penetration welding is fully completed.
ELEVATION PLAN VIEW CONTINUITY PLATE TOP & BOTTOM TO MATCH BEAM FLANGE THICKNESS + 1/8", MIN 1/2" THICK (Fy=50 KSI) - CONTINUITY PLATE INTERRUPTS HSS COLUMN AT TOP & BOTTOM FLANGES - EXTEND 1/2" BEYOND FACE OF COL WHERE BEAM OCCURS ONE SIDE SEE NOTE 2 NON-FRAME BEAM PER PLAN NON-FRAME BEAM PER PLAN COLUMN ABOVE WHERE OCCURS NOTES SYMMETRICAL ABOUT CENTER LINE CONTINUITY PLATE HSS OR PIPE COL 1. 2. 3. 4. NOTES: PROVIDE THESE NON-FRAME MOMENT CONNECTIONS WHERE DENOTED ON PLAN THUS SEE DETAIL 01/S6.11 FOR SHEAR PLATE THICKNESS/GEOMETRY, SHEAR PLATE WELDING & QUANTITY OF FASTENERS EXCEPT USE 1"Ø A490-SC BOLTS IN LIEU OF BEARING TYPE BOLTS. SEE DETAIL 10/S6.11 FOR CONNECTION AT WIDE FLANGE COL OR WIDE FLANGE BEAM. SHORE CANTILEVERD BEAM UNTIL CJP WELDING IS COMPLETED. UNO MATCH FRAME BEAM WIDTH 1/2"MIN 1/2" 1/2" CJP CJP WHERE COL ABV OCCURS CJP CP TOP and BOTTOM FLANGES CJP COLUMN TO TOP and BOTTOM CONTINUITY PLATE´s
