Structural · S-24X4V

Housekeeping Pad Over Steel Deck

Materials

Concrete Steel

Elements

Beams Walls Floors / Slabs Decks Insulation Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Welded Connection Rebar Splice / Development

About this detail

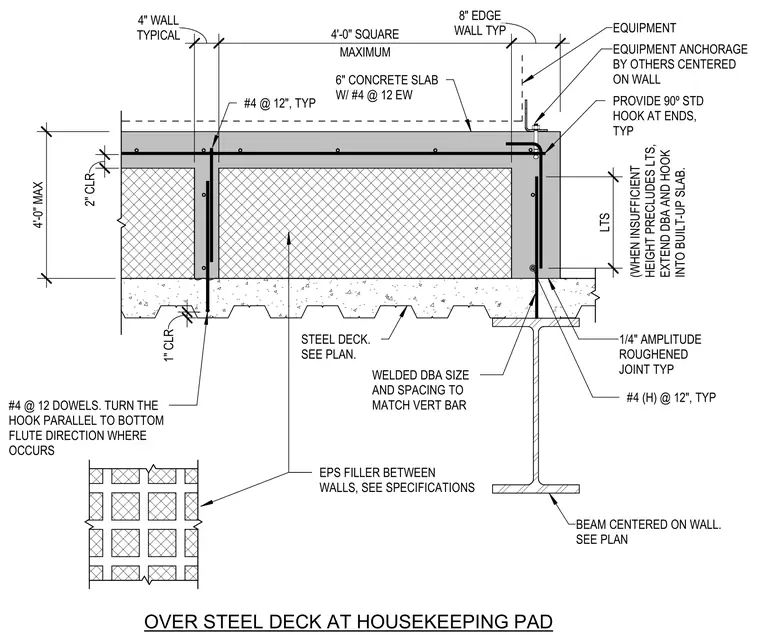

A concrete housekeeping pad constructed over a corrugated steel deck and supporting structural steel beam. A six-inch concrete slab reinforced with number four bars at twelve inches each way sits atop an EPS expanded polystyrene filler grid, bounded by four-inch walls and an eight-inch edge wall. Number four vertical reinforcing bars with ninety-degree standard hooks anchor into the slab, while number four dowels at twelve inches on center tie into the assembly. Where insufficient height precludes lap splice length, the dowel bar anchor is extended and hooked into the built-up slab, with hooks turned parallel to the bottom flute direction of the steel deck. A welded dowel bar anchor sized and spaced to match the vertical bar connects to the supporting beam centered beneath the wall, featuring a one-quarter-inch amplitude roughened construction joint. Equipment anchorage by others is bolted to the edge wall.
