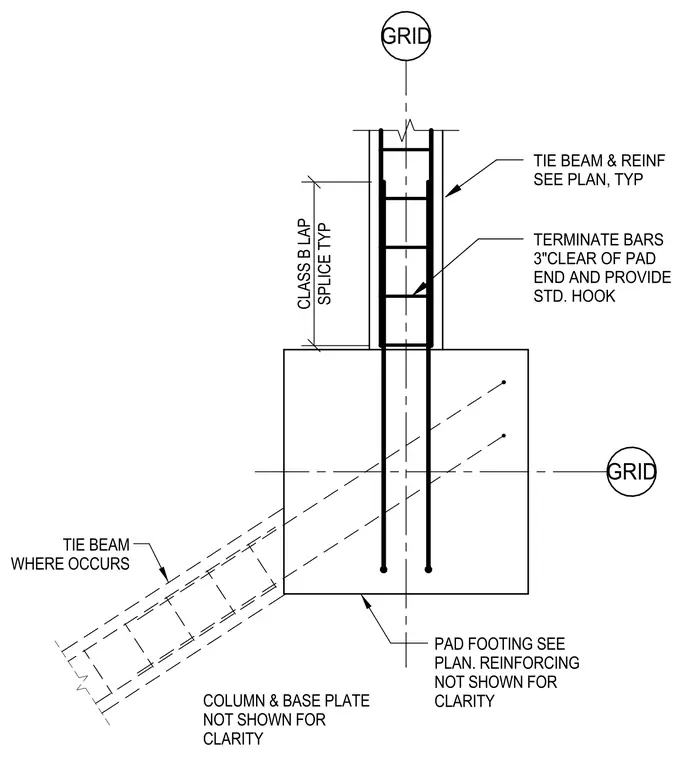

Reinforcing steel configuration at the intersection of a concrete tie beam and a pad footing. The tie beam reinforcement requires a typical Class B lap splice above the footing. Bars terminate three inches clear of the pad end and are provided with standard hooks. The column and base plate as well as pad footing reinforcing are omitted for clarity. Additional tie beams are shown where applicable per plan.
CLASS B LAP SPLICE TYP TIE BEAM & REINF SEE PLAN, TYP TERMINATE BARS 3"CLEAR OF PAD END AND PROVIDE STD. HOOK PAD FOOTING SEE PLAN. REINFORCING NOT SHOWN FOR CLARITY COLUMN & BASE PLATE NOT SHOWN FOR CLARITY TIE BEAM WHERE OCCURS GRID GRID
