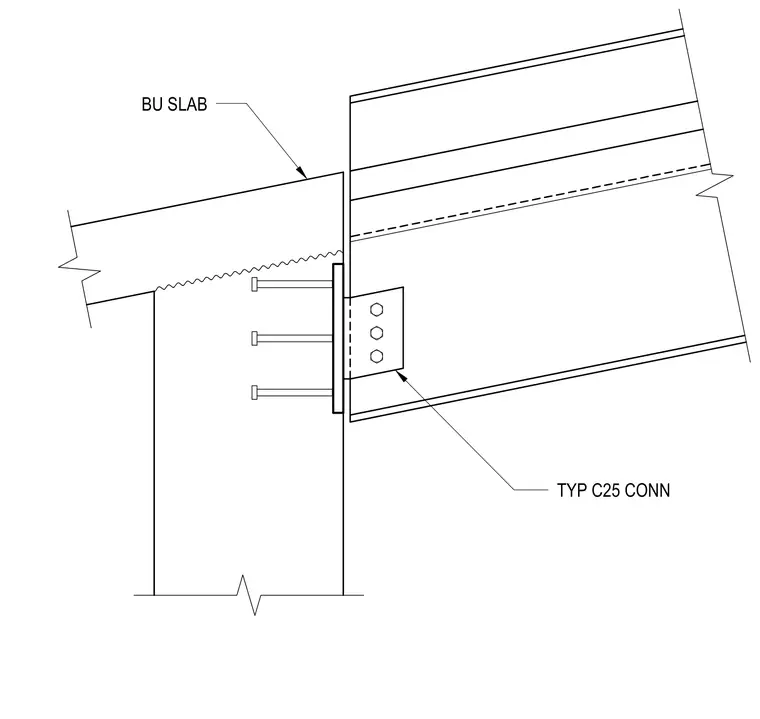

A structural steel framing connection secures a built-up slab to a primary structural member using a typical C25 connection plate. Three headed shear studs anchor the connection plate directly into the vertical concrete or composite slab element. A bolted clip angle or shear tab assembly transfers load from the framing member to the connection plate.
