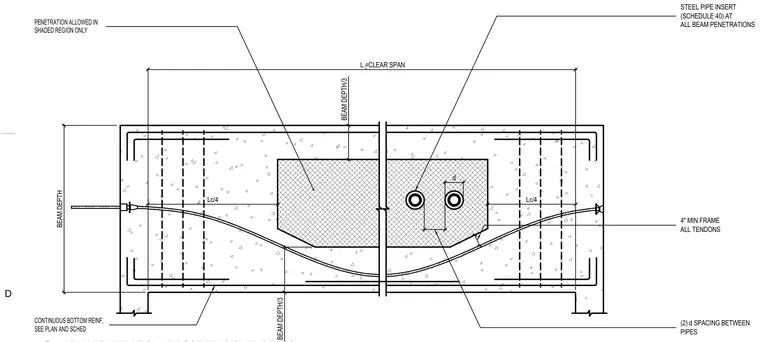

Post-tensioned concrete beams require careful placement of utility penetrations to avoid damaging internal tendons and reinforcement. A shaded allowable penetration zone is restricted to the middle portion of the clear span, located away from the high-stress end regions spanning one-quarter of the clear length. All beam penetrations must be lined with Schedule 40 steel pipe inserts and framed by post-tensioned tendons spaced a minimum of four times the pipe diameter apart, with twice the diameter spacing maintained between individual pipes. Continuous bottom reinforcement and continuous top reinforcement run the length of the member as specified in the structural plans.
CONTINUOUS BOTTOM REINF, SEE PLAN AND SCHED C PENETRATION ALLOWED IN SHADED REGION ONLY STEEL PIPE INSERT (SCHEDULE 40) AT ALL BEAM PENETRATIONS (2) d SPACING BETWEEN PIPES 4" MIN FRAME ALL TENDONS BEAM DEPTH L =CLEAR SPAN BEAM DEPTH/3 Lc/4 Lc/4 BEAM DEPTH/3 d D
